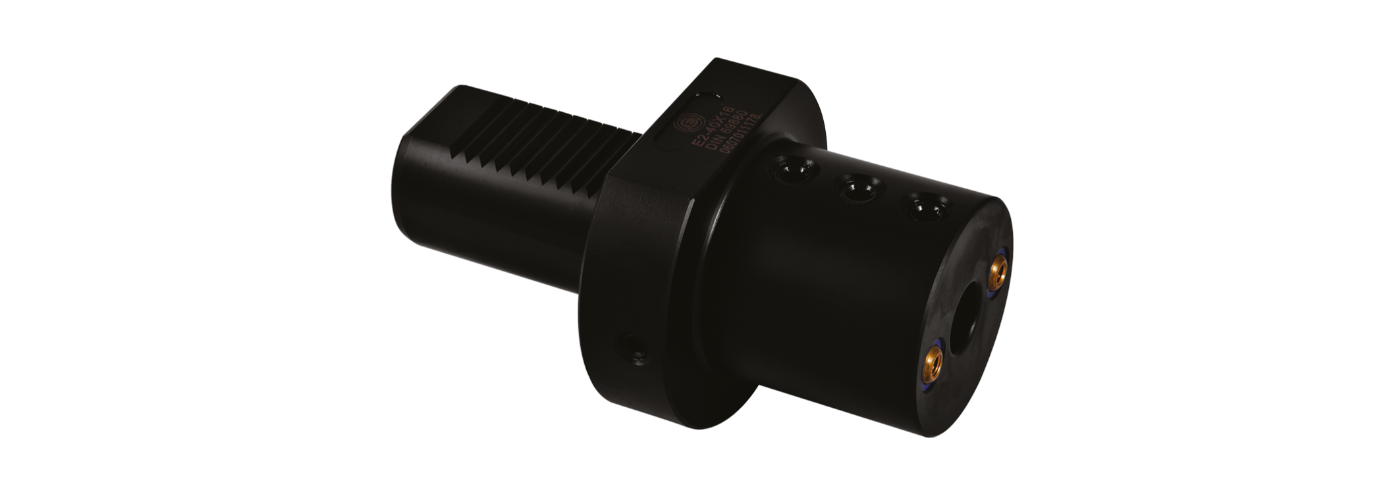

Bohrerhalter DIN 69880 VDI Form E2
Informationen:
- DIN 69880 VDI 16 / VDI 20 / VDI 25 / VDI 30 / VDI 40 / VDI 50
| 16 | 44 | 13 | 18 | 18 | 32 | 40 | 16 x 06 | 225/169.52.06.44 | 86 € | |
|
| 16 | 44 | 13 | 18 | 18 | 32 | 40 | 16 x 08 | 225/169.52.08.44 | 86 € | |
|
| 16 | 44 | 13 | 18 | 18 | 32 | 40 | 16 x 10 | 225/169.52.10.44 | 86 € | |
|
| 16 | 44 | - | 18 | 18 | 40 | 40 | 16 x 12 | 225/169.52.12.44 | 86 € | |
|
| 16 | 44 | - | 18 | 18 | 40 | 40 | 16 x 16 | 225/169.52.16.44 | 86 € | |
|
| 20 | 50 | 18 | 23 | 23 | 40 | 50 | 20 x 08 | 225/209.52.08.50 | 88 € | |
|
| 20 | 50 | 18 | 23 | 23 | 40 | 50 | 20 x 10 | 225/209.52.10.50 | 88 € | |
|
| 20 | 50 | 18 | 23 | 23 | 40 | 50 | 20 x 12 | 225/209.52.12.50 | 88 € | |
|
| 20 | 50 | 18 | 23 | 23 | 40 | 50 | 20 x 16 | 225/209.52.16.50 | 84 € | |
|
| 20 | 50 | - | 23 | 23 | 50 | 50 | 20 x 20 | 225/209.52.20.50 | 84 € | |
Angaben zur Produktsicherheit:
Hersteller:
Eroglu Präzisionswerkzeuge GmbH
Heerweg 9, D-72116 Mössingen
Telefon: +49 7473 9545-0, info@eroglu.de
Link zu unserem Sicherheitsdatenblatt
